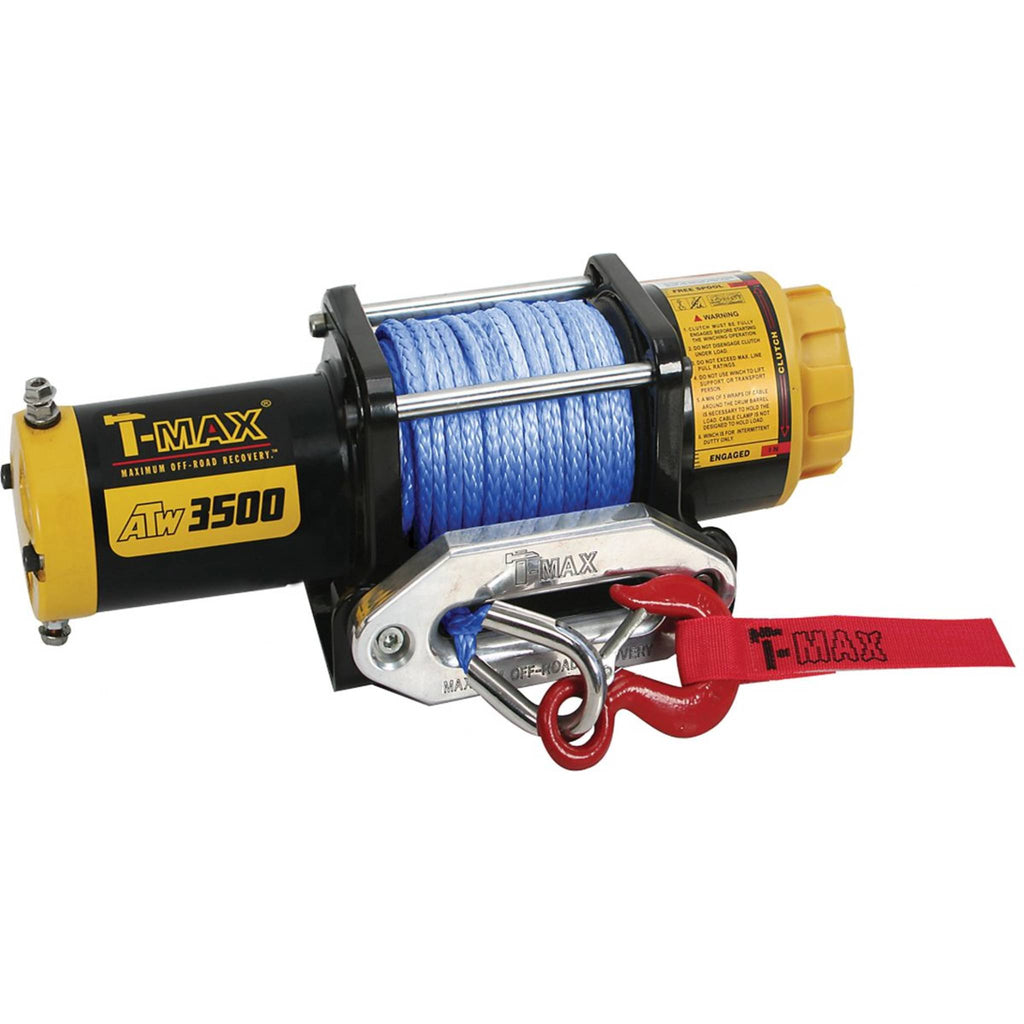

T-Max ATV 3500lb Winch

The T-Max 3500lb 12 Volt  electric winch spooled with synthetic rope, is great for small 4×4’s like  your popular  Suzuki models (sierra,jimny,vitara) or any other smaller size 4wd. you can also use the TMAEW3500PROPR for ATV’s and  car trailers. the T-Max 3500lb winch provides you that added security and support know you can easily winch yourself out of a tricky bog hole, or tow up your next project on a car trailer.  

rated line pull: 3500lb (1587kg) single line

motor: 12v dc 0.8kw, (permanent magnet)

control: remote control included

Gear ratio: 148:1

clutch: turn 90′ by handwheel

braking: EBT (eccentric block type)

drum size: diameter x length 2.0″ x 2.9″ (52mm x 74mm)

synthetic rope: Dyneema SK-75 fibre diameter x length 4/19″ x 50′ (5.5mm x 15m)

recommended battery: 650cca minimum for winching

weight: 24.2lb (11kg)

overall dimensions: 13.5″ x 4.7″ x 5.1″ (348 x 120 x 128mm)

mounting bolt pattern: 4.9″ x 3″ (124 x 76mm)

fairlead: aluminium hawse fairlead

TMAEW3500PROPR Line Pull & Cable Capacity

layer of cable:                      1              2               3            4

rated line:          Lbs         3500      2920      2540     2260

pull per layer:   Kg           1589      1326      1153       1026

cumulative:       Ft            9.3         20.3       32.6      50.0

cable capacity:  M           2.8        6.1          9.8         15.0

line speed & amp draw-first layer:

line pull lbs:                         NO             1000         2000         3000         3500

kg:                                           LOAD          454            907           1360          1587

line speed ft/min:              14.8             9.5             8.5            6.6             5.9

m/min:                                    4.5               2.9            2.6            2.4              1.8

motor current amps:       25                 79            122             160            200
